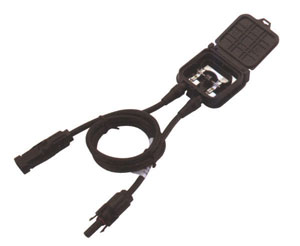

2-Rail Junction Box-4

Alpha Products, Inc. 351 Irving Drive, Oxnard, CA 83030, USA
Tel: 805-981-8666 / Fax: 805-988-6555 /
Contact Us

Part number

Diodes
Rating

JB Rated Current

Connector dia.
(mm)

Cable size
(sq. mm)

Cable length
(m)

3SO/JBM2

10A @1000V

8A

4.0

2.5

1.0

3SO/JBG7

12A @200V

10A

4.0

4.0

1.0

Specifications

Cable Size

 2.5 sq.mm & 4.0 sq.mm (14/12 AWG)

Rated Voltage

 600V

Contact Resistance

 5 mOhm max

Protection Class

 II

Housing Material

 PPO

Terminal Material

 Copper, tin plated

Protection Degree

 IP67 (IEC 60529)

Flame Class

 UL94V-0

Temperature Range

 -400C to +850C

Box size

 60 x 56 x 17 mm

Description

 For thin film, potted
