Shown below is a sampling of various popular cable splices with over-molded cable junctions that provides the user with a reliable, water sealed, rugged assembly. The connectors are assembled on to the cable as desired. For your custom requirements please contact us. Each branch cable length, color, AWG size to be specified by customer.
|
|
|
|
|
P/N: 3SO/CA12A
|
P/N: 3SO/CA12C
|
|
Cable size
|
14, 12, 10 AWG
|
Cable size
|
14, 12, 10 AWG
|
|
PV connector
|
2x male + 1x female
|
PV connector
|
1x male + 2x female
|
|
Rated current
|
25A
|
Rated current
|
25A
|
|
|
|
|

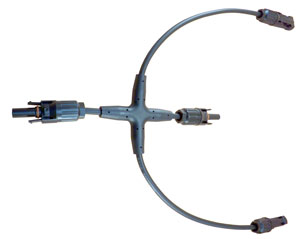

P/N: 3SO/CA13A
|
P/N: 3SO/CA13C
|
|
Cable size
|
14, 12, 10 AWG
|
Cable size
|
14, 12, 10 AWG
|
|
PV connector
|
2x male + 2x female
|
PV connector
|
2x male + 2x female
|
|
Rated current
|
25A
|
Rated current
|
25A
|
|
|
|
|

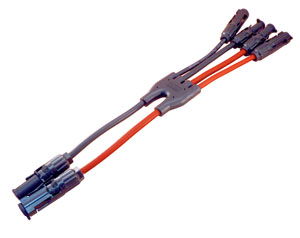

P/N: 3SO/CA24A
|

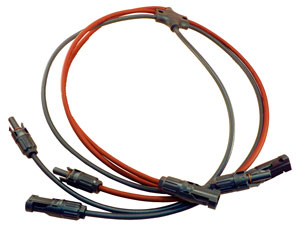

P/N: 3SO/CA24B
|
|
Cable size
|
14, 12, 10 AWG
|
Cable size
|
14, 12, 10 AWG
|
|
PV connector
|
3x male + 3x female
|
PV connector
|
3x male + 3x female
|
|
Rated current
|
25A
|
Rated current
|
25A
|
|
Specifications
|
|
Rated Voltage
|
600V
|
|
Temperature range
|
-400C to +850C
|
|
PV cable length
|
Please specify length & color of each branch.
|
|
|
|
|
