Portable Solar Tracking System

Alpha Products, Inc. 351 Irving Drive, Oxnard, CA 83030, USA
Tel: 805-981-8666 / Fax: 805-988-6555 / Contact Us

We are pleased to offer portable solar tracking panels with 100 Watt and 500 Watt configurations They are ideally suited for locations without other electric power sources or where “silence” maybe essential. They are relatively light weight and could be transported to remote location and placed on vehicles or structures. This device is could also be used to supplying tube wells, lighting, surveillance, monitoring, or communications equipment in remote area.  For more details please contact us.

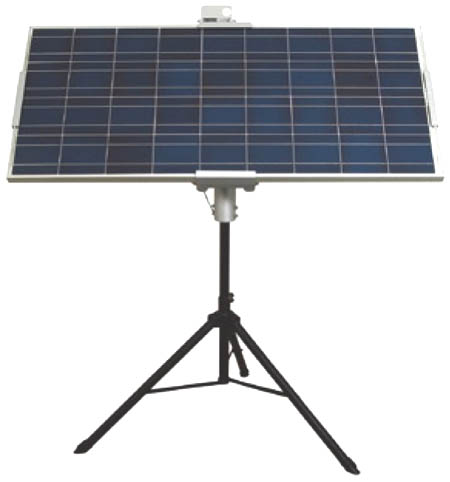

PV Panel Assy

Specifications

Tracking

Dual Axis - AZ & EL

Tracking Speed (nominal)

0.5 RPM

Azimuth (approx.)

0-360 deg

Elevation (approx.)

0-80 deg

Material

Aluminum Frame

Net Weight (approx.)

25 Lb.

Gross Weight (approx.)

140 Lb.

Dimensions

16 in x 6 in x 18 in

Max Power  (2 PV Panels)

2 x 250 = 500 Watts

Motor Power (2 motors)

12 VDC / 10W Each

PV Panel Thickness

1.6 in Max

Information supplied subject to change

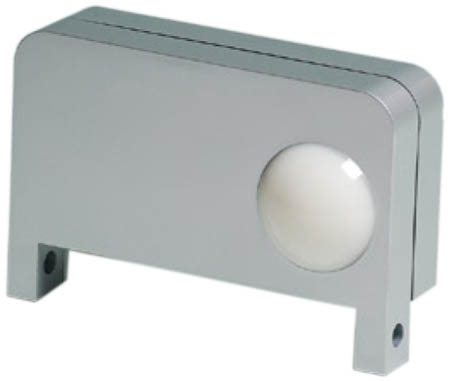

Solar Tracker

Specifications

Solar Energy Receiver

Dynamic Tracking

Size (approx.)

5” x 2.5” x 1.5”

Temp. Range (OPEC)

-40 C to + 85 C

Input Voltage - Solar Panel

12 - 60 Volts

Input Voltage - Battery

12 V DC (alternate pwr)

Output (Max)

12 V DC / 3 Amp

Power Consumption

< 1 Watt
